Cablu aluminiu ACYY‑F / NAYY 1X25mm

SKU: ACYY‑F / NAYY 1X25mm
In Stoc

Add to Wishlist
Add to Wishlist

Ți-a plăcut acest produs? Adaugă acum la favorite și urmărește produsul.

Add to Wishlist
Add to Wishlist
Ai o intrebare? Întrebați un specialist

+40 724 308 308 Apelează acum gratuit

Prețuri mici

Garanție de potrivire a prețurilor

Montare garantată.

Întotdeauna partea corectă

Experți interni.

Ne cunoaștem produsele

Retururi ușoare.

Rapid și fără probleme

Categorii: ,
Tags:

Descriere

Product Description

ACYY / ACYY-F – Low voltage power cable 0.6/1 kV

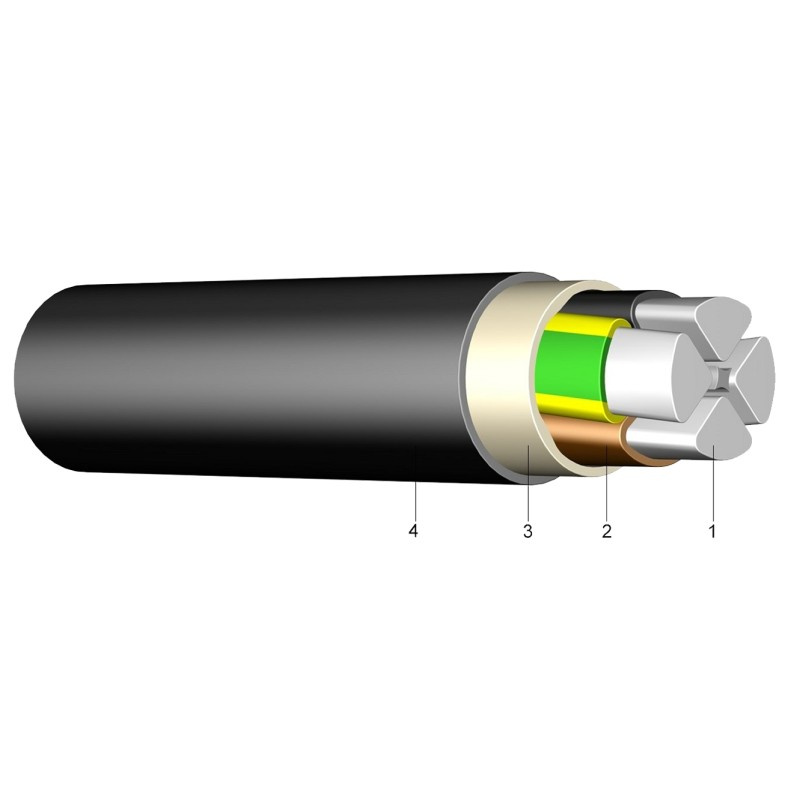

1. Cable construction
Conductor: aluminum (class 1 or 2), monowire (re), multiwire (rm).
Insulation: PVC
Filling.
Outer sheath: PVC, black or grey.
Acyy / Acyy-F 0.6/1kv Aluminium Conductor PVC Insulated and Sheathed Cable

Application
Power supply to power stations. The cables can be installed in open or confined areas, underground (in pipes), in sewers, in concrete, in places where no mechanical damage is expected.

ACYY / ACYY-F  low voltage power cable 0.6./1 kV – Technical data and tests

Conductor type : monowire (re), multiwire (rm)
Rated voltage Uo/U : 0.6/1 kV
Test voltage : 4 kV AC or 12 kV DC, 5 min
Min. temperature of cable : installation :   -5º C
Max. allowed operating temperature : 70º C
Max. short-circuit temperature : 160º C
Min. bending radius : 15 x cable diameter – single-core cable
12 x cable diameter – multicore cable
Max. tensile strain during installation : max 50 N/mm²
Color coding : 1 conductor-blue or yellow-green;
2 conductors – blue,brown;
– yellow-green,black for sect > 10 mm²;
3 conductors – brown,black,grey;
– yellow-green, blue,brown;
4 conductors – blue, brown, black,grey;
– yellow-green, brown,black,grey;
5 conductors – blue, brown, black, grey, black;
– yellow-green, blue, brown, black,grey;
More than 5 conductors: – numbered black conductors;
– yellow-green and numbered conductors.
Standards:
Cable                : IEC 60502-1.
Conductors        : IEC 60228.
Insulation          : IEC 60502-1.
Flame retardancy:
ACYY    : EN 50265-2-1 (IEC 60332-1) – flames on a single vertical cable.
ACYY-F : EN 50266-2-4 (IEC 60332-3-25 Cat. C) – flames on a bundle of cables.

ACYY / ACYY-F  low voltage power cable 0.6./1 kV – Applications
ACYY / ACYY-F is a cable for power supply to power stations. This cable can be installed in open or confined areas, underground (in pipes), in sewers, in concrete, in places where no mechanical damage is expected.

ACYY / ACYY-F  low voltage power cable 0.6./1 kV – Other standards
British             : AL/PVC/PVC.
German           : NAYY.
Austrian           : E-AYY.
Russian            : АВВГ.
Central Europe : PP 00-A.
Turkish            : YAVV-R.
